Description

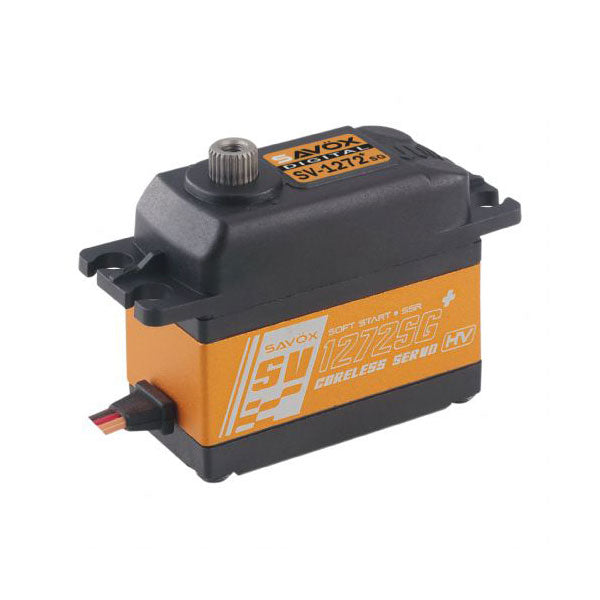

This is the Savox SV-1272SG Plus Monster Torque, High Voltage Digital Servo. A very powerful servo in a standard case, the SV1272SG servo fits many applications.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Features:
Super strong and precision made unique steel gears provide durability and survive heavy use.
Capable of HV operation.
Extreme amount of torque in a standard case.
Ideal for large scale aircraft, 1/8 off road buggies and trucks, and Monster Trucks.
"Plus" series servos feature Soft Start and Sanwa SSR compatibility.
Specifications:
Torque @ 7.4V - 35.0kg/486.1oz-in
Torque @ 8.4V - 40.0kg/555.5oz-in
Speed @ 7.4V - 0.10 sec/60 deg
Speed @ 8.4V - 0.09 sec/60 deg
Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
Weight: 63.0g
Technical Details
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Bearings: 2BB
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
