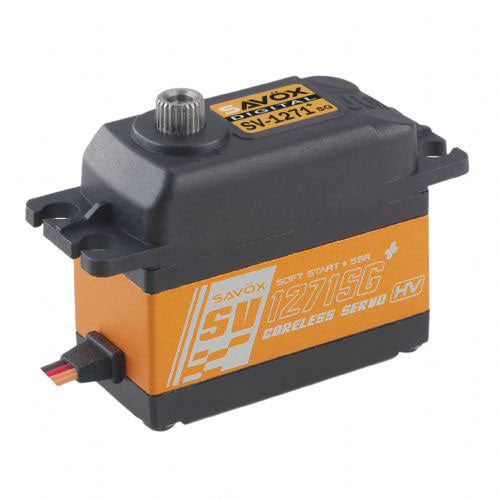

The Savox SV-1271SG Plus High Torque, High Voltage Digital Servo is one of the best overall servos you can find. Fast and high torque, the SV1271SG servo is applicable for numerous tasks.
"Plus" models feature Soft Start and Sanwa SSR Compatibility
Super strong and precision made unique steel gears provide durability and survive heavy use.
Capable of HV operation.
Fast and high torque for numerous applications.
Ideal for large scale aircraft, 1/8 off road, and other off road vehicles.
Soft Start and Sanwa SSR Compatibility
Torque @ 7.4v - 25.0kg/347.2oz-in
Torque @ 8.4v - 35.0kg/486.1oz-in
Speed @ 7.4v - 0.08 sec/60 deg
Speed @ 8.4v - 0.07 sec/60 deg

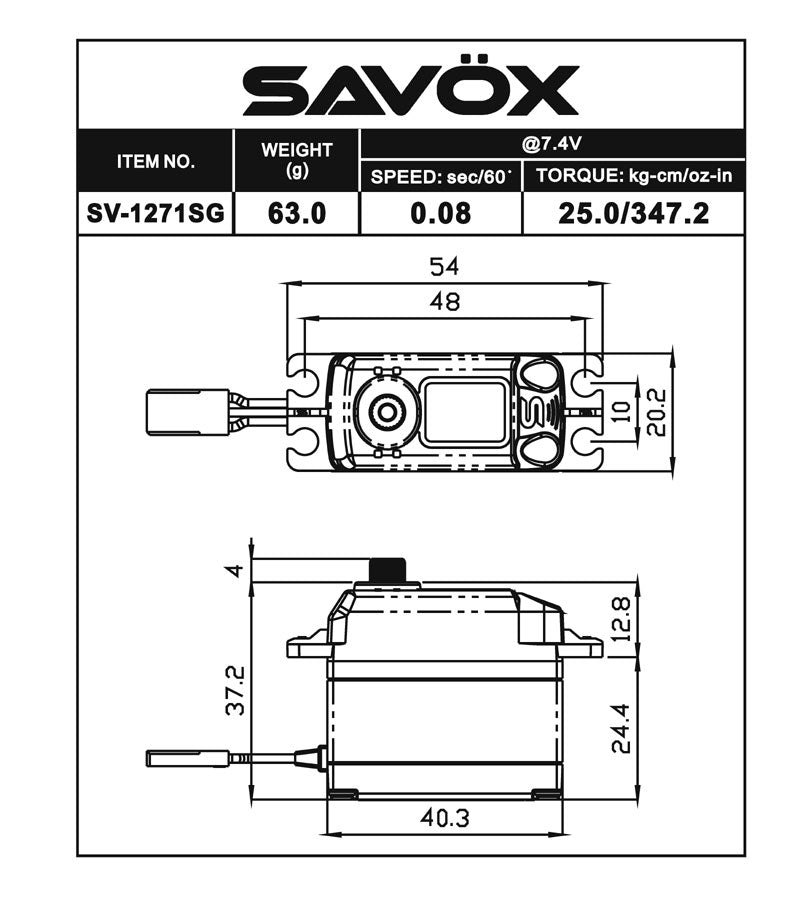

Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 120mA @6.0V, 150mA @7.4V
Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V
Idle Current: 5mA @4.8V, 5mA @6.0V
Wire Length: 200 ± 5mm
Output Gear Spline: 25 Tooth
Operating Travel: 100° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 130° (900 → 2100 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
