Savox

SV1250MG - DISCONTINUED - Please See SV1250MGP for Replacement

$64.99$79.99
  • SAVSV1250MG-High-Voltage-Micro-Tail
  • SAVSV1250MG-High-Voltage-Micro-Tail
  • SV1250MG - DISCONTINUED - Please See SV1250MGP for Replacement

Savox

SV1250MG - DISCONTINUED - Please See SV1250MGP for Replacement

$64.99$79.99

Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

The SV-1250MG mini-sized, metal-geared, digital servo is extremely powerful for it's size and capbable of operating on higher voltages than most mini/micro servos compared to other brands.

Features:

  • Steel gear train provide durability against heavy use.
  • Capable of HV operation.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal where torque is needed in a small mounting space.

  • Specifications:

  • Torque @6v - 4.6kg/63.9oz-in
  • Torque @7.4v - 8.0kg/111.1oz-in
  • Speed @6v - 0.11 sec/60 deg
  • Speed @7.4v - 0.095 sec/60 deg

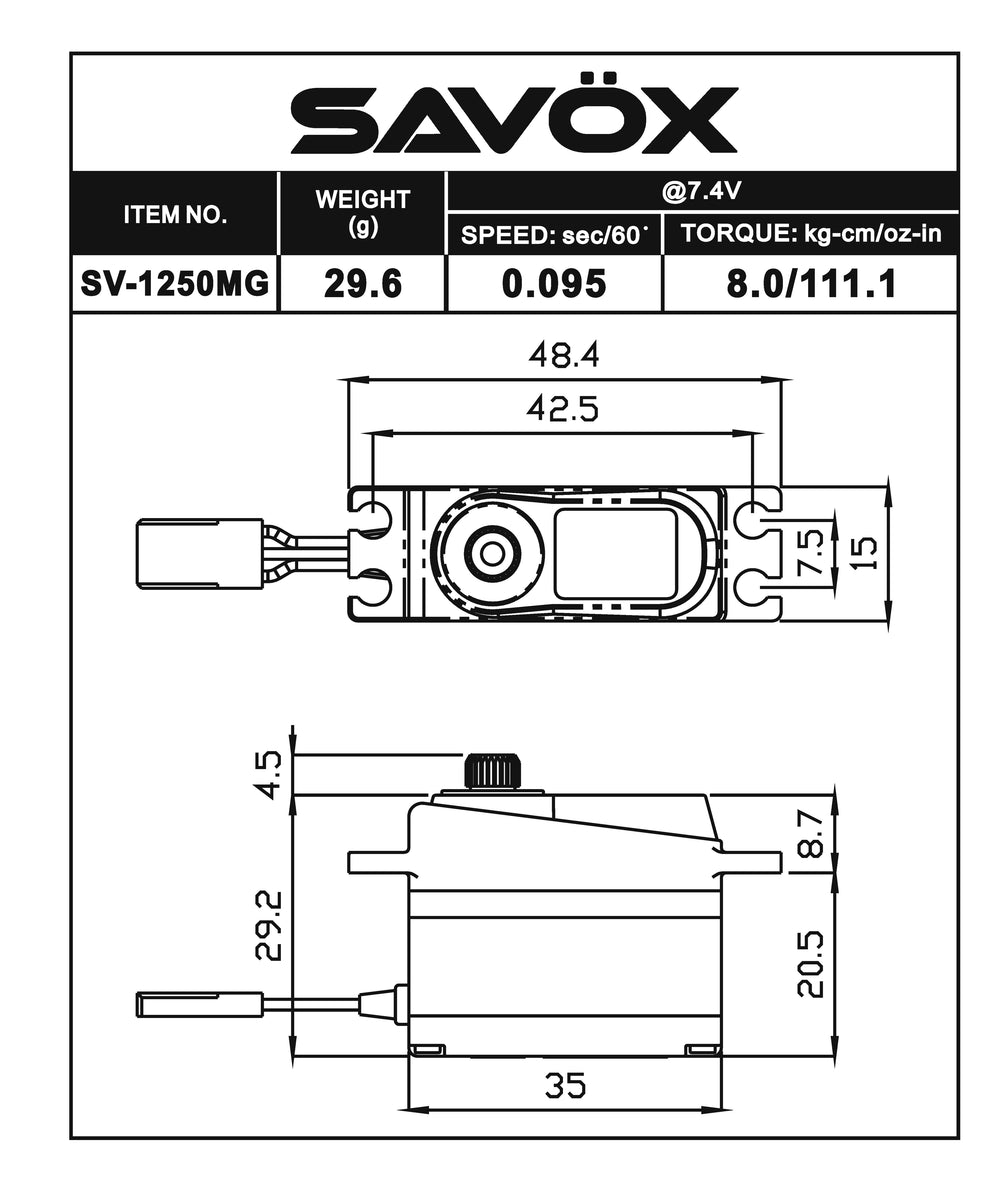

  • Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
  • Weight: 29.6g
  • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1600mA @6.0V, 2000mA @7.4V
  • Idle Current: 6mA @4.8V, 6mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 110° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 154° (800 → 2200 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
  • 1 Year Warranty
