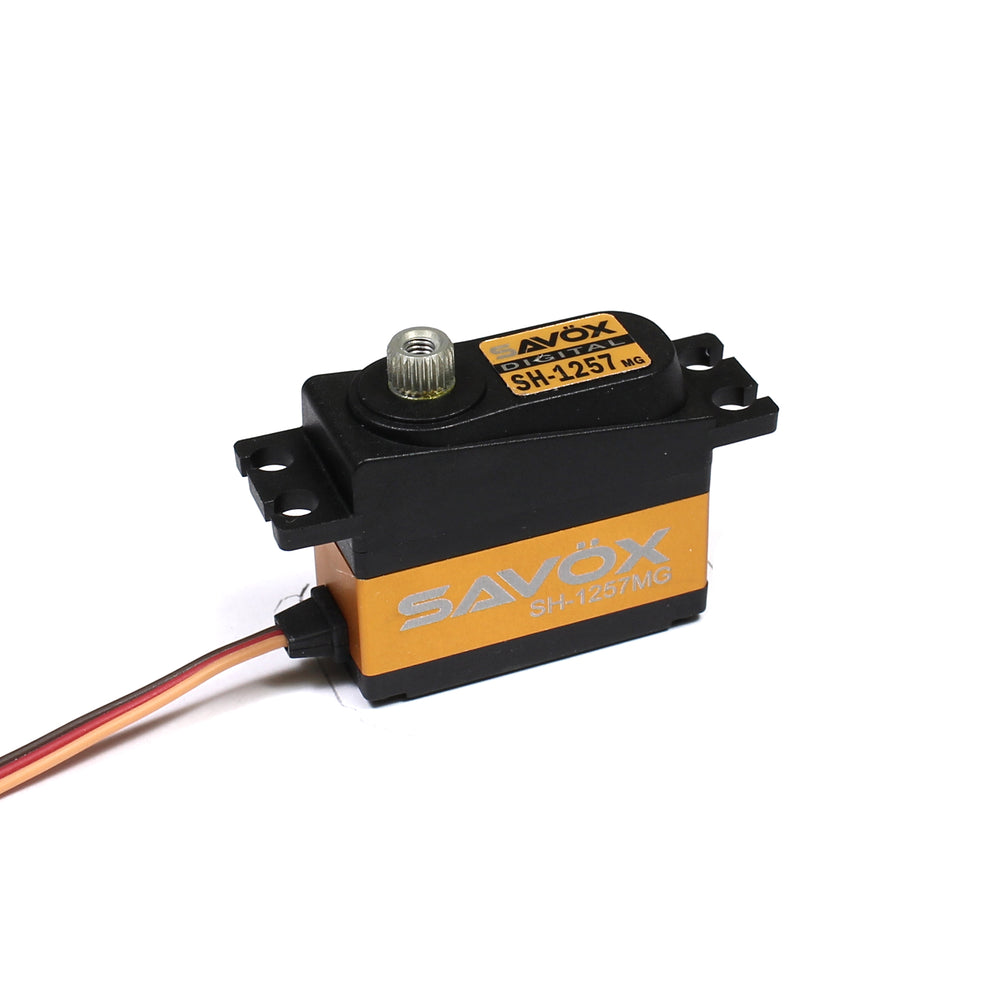

The Savox SH-1257MG is a mini sized, metal-gear, digital servo that is extremely fast and ideal for small applications where speed is essential.
Metal gear train ensures durability and longevity.
Extremely fast for quick response.
Aluminum middle case allows for cooler operating temperatures.
Ideal for rudder on 450 level helis, CCPM on 500 level helis, and steering servo on 1/12th scale cars.
Dual ball bearing support.
Torque @4.8v - 1.9kg/26.4oz-in
Torque @6v - 2.5kg/34.7oz-in
Speed @4.8v - 0.09 sec/60 deg
Speed @6v - 0.07 sec/60 deg

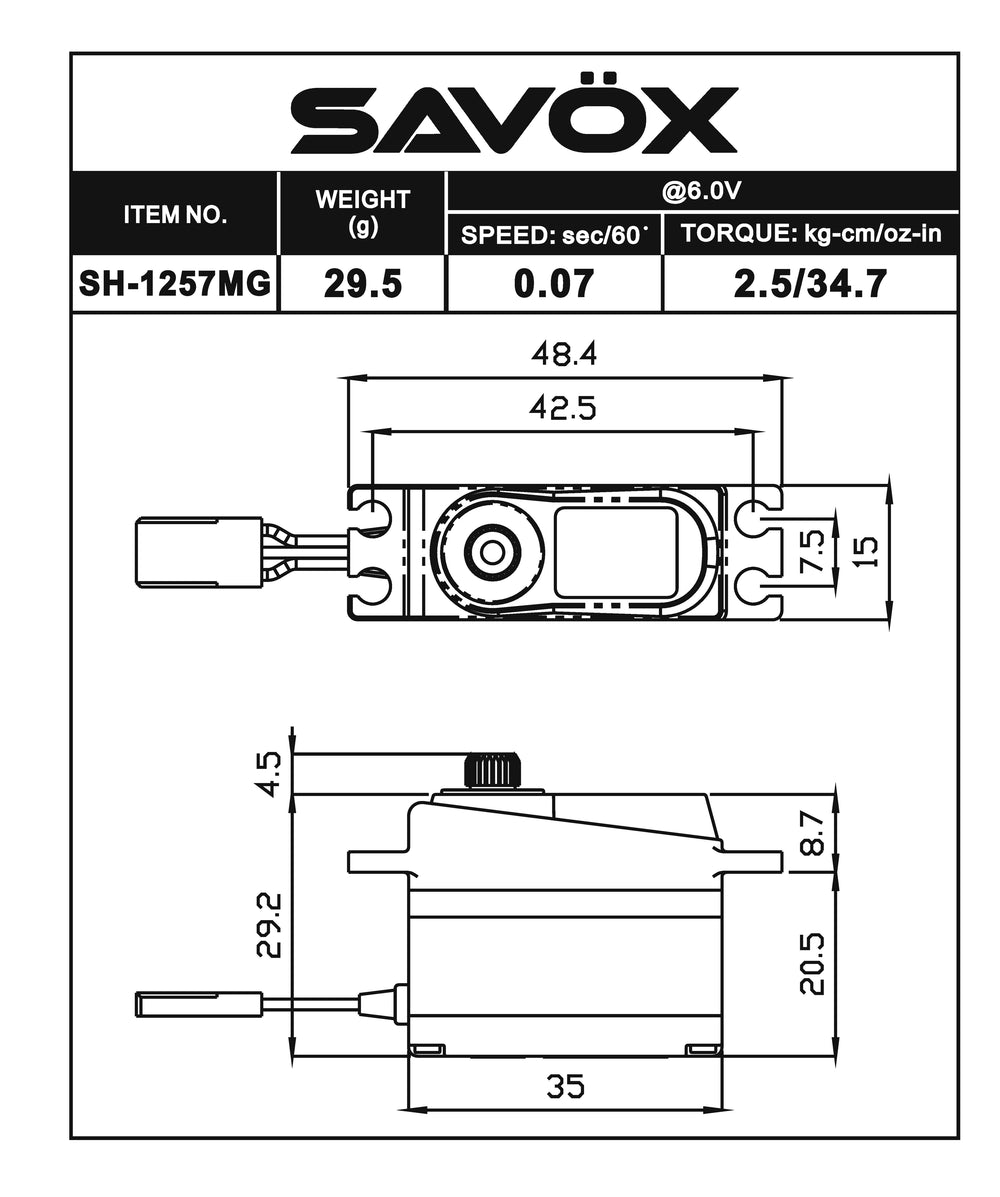

Dimensions L x W x H (mm): 35.0 x 15.0 x 29.2
Operating Temperature: 14° - 122°F (-10° - 50°C)
Running Current (no load): 80mA @4.8V, 100mA @6.0V
Stall Current (at locked): 800mA @4.8V, 1000mA @6.0V
Idle Current: 6mA @4.8V, 6mA @6.0V
Wire Length: 250 ± 5mm
Output Gear Spline: 25 Tooth
Operating Travel: 110° (1000 → 2000 µ second)
Neutral Position: 1500 µ second
Pulse Width Range: 800 → 2200 µ second
Maximum Travel: Appx 154° (800 → 2200 µ second)
Refresh Rate: 333 Hz
Motor Type: Coreless
