Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

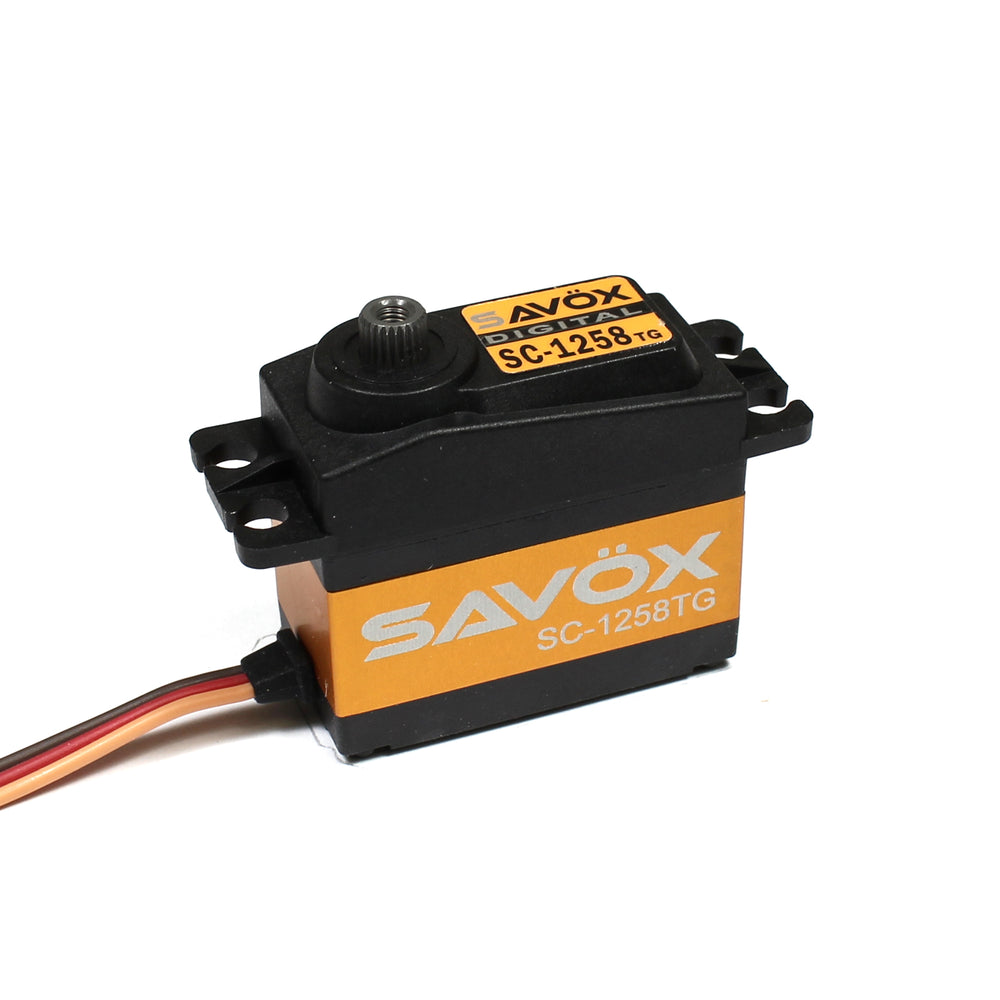

The SC1258TG is a high speed standard size servo which combines leading edge technology with super high 12-bit (4096) resolution for smooth operation.

Features:

  • Extremely strong titanium gears ensure long-life, durability, and light weight.
  • Ideal for CCPM on 600 and 700 class heli, steering servo on 1/10 scale buggies.
  • Aluminum middle case allows for cooler operating temperatures.

  • Specifications:
  • Torque @ 4.8v - 9.6kg/133.3oz-in
  • Torque @ 6v - 12.0kg166.6oz-in
  • Speed @ 4.8v - 0.10 sec/60 deg
  • Speed @ 6v - 0.08 sec/60 deg
  • Dimensions L x W x H (mm): 40.8 x 20.2 x 37.2
  • Weight: 64g
  • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @4.8V, 120mA @6.0V
  • Stall Current (at locked): 4000mA @4.8V, 5000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless
  • 1 Year Warranty
