Savox

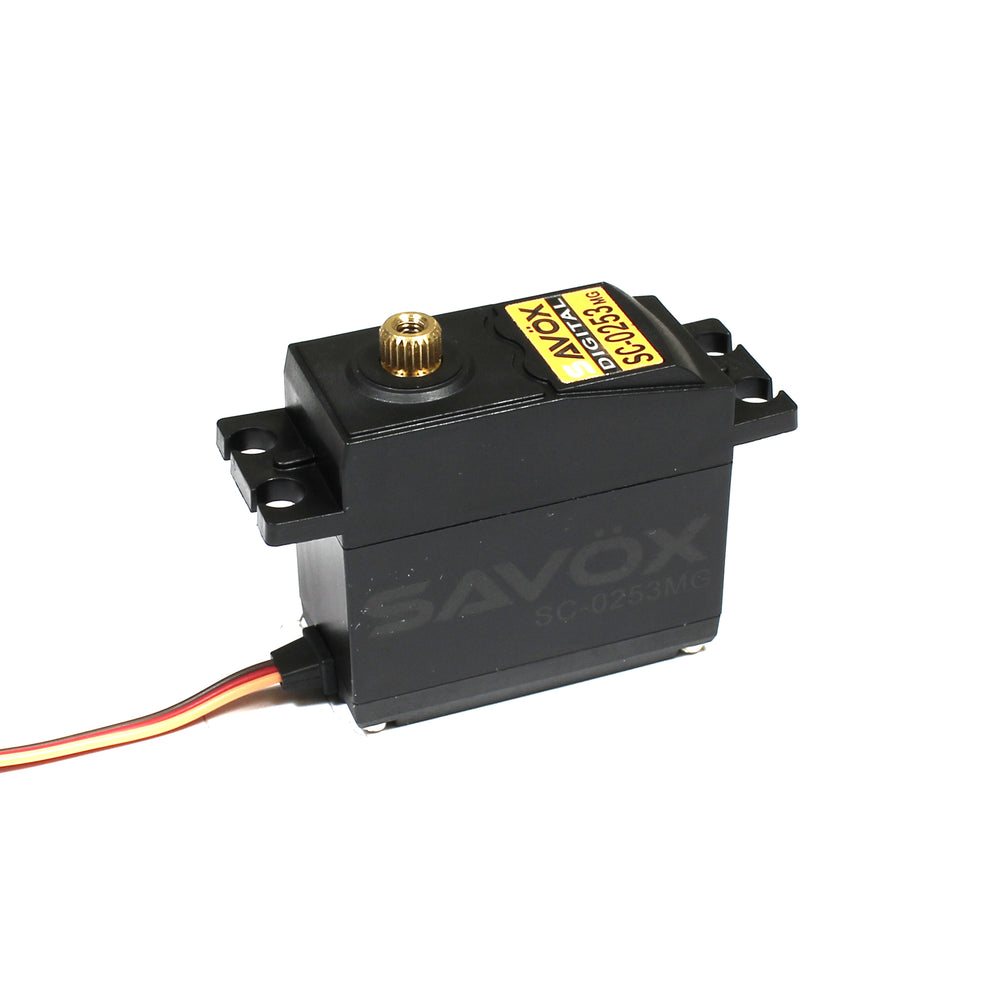

Discontinued - Use SC0253MGP - SC0253MG - Standard Digital Servo 0.15/83.3 @ 6V

$32.99$39.99

Description

The SC-0253MG is a budget friendly, digital standard servo with metal gears and a bearing support for those wanting more than what a standard servo offers.

Features:

  • Strong metal gear train for added durability.
  • Ideal for 1/10 cars and planes.
  • Great replacement for standard servos with plastic gearing.

  • Specifications:

  • Torque @ 4.8v - 4kg/55.0oz-in
  • Torque @ 6v -6.0kg/83.3oz-in
  • Speed @ 4.8v - 0.17 sec/60 deg
  • Speed @ 6v - 0.15 sec/60 deg
  • Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0
  • Weight: 59.0g
  • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 220mA @4.8V, 240mA @6.0V
  • Stall Current (at locked): 800mA @4.8 V, 1000mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 120° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 164° (800 → 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
  • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
