Savox

SB2263MG-CE - DISCONTINUED - Please See SB2263MG-BE for Replacement

$96.99$119.99
  • SAVSB2263MG-CE-Ryan-Cavalieri-Edition-Low
  • SAVSB2263MG-CE-Ryan-Cavalieri-Edition-Low
  • SB2263MG-CE - DISCONTINUED - Please See SB2263MG-BE for Replacement

Savox

SB2263MG-CE - DISCONTINUED - Please See SB2263MG-BE for Replacement

$96.99$119.99

Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

Savox USA and 4-time IFMAR World Champion Ryan Cavalieri are delighted to provide a premium assortment of Signature Edition Savox servos. Exclusive to North America, each servo features an optimized deadband for enhanced on-center feel, increased holding torque, and black lead wires.


Features:

  • Metal gear train ensures durability under harsh situations.
  • Special signature aluminum case and shortened servo lead.
  • Extremely fast for quick response.
  • Ideal for 1/10 on road vehicles.
  •

    Specifications:

  • Torque @ 4.8v - 8.0kg/111.1oz-in
  • Torque @ 6v - 10.0kg138.9oz-in
  • Speed @ 4.8v - 0.10 sec/60 deg
  • Speed @ 6v - 0.076 sec/60 deg

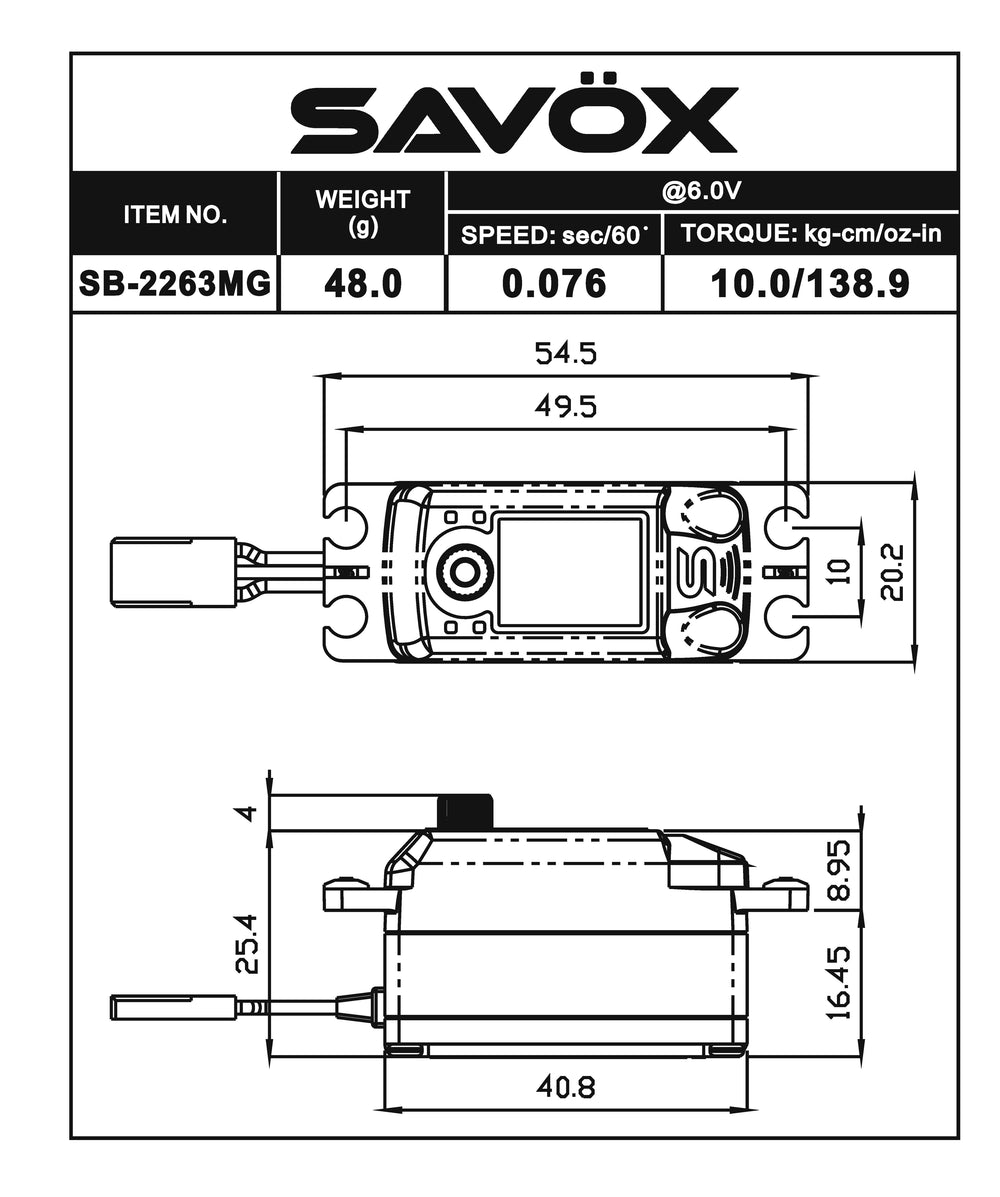

  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
  • Weight: 48.0g
  • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @4.8V, 220mA @6.0V
  • Stall Current (at locked): 2900mA @4.8 V, 3700mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 50 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless
  • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
