Savox

SV0220MG - DISCONTINUED - Please see SV0220MGP for replacement

$34.99$44.99
  • SAVSV0220MG-High-Voltage-Std-Digital-Servo
  • SAVSV0220MG-High-Voltage-Std-Digital-Servo
  • SV0220MG - DISCONTINUED - Please see SV0220MGP for replacement

Savox

SV0220MG - DISCONTINUED - Please see SV0220MGP for replacement

$34.99$44.99

Description

DISCONTINUED, PLEASE CLICK HERE FOR REPLACMENT!

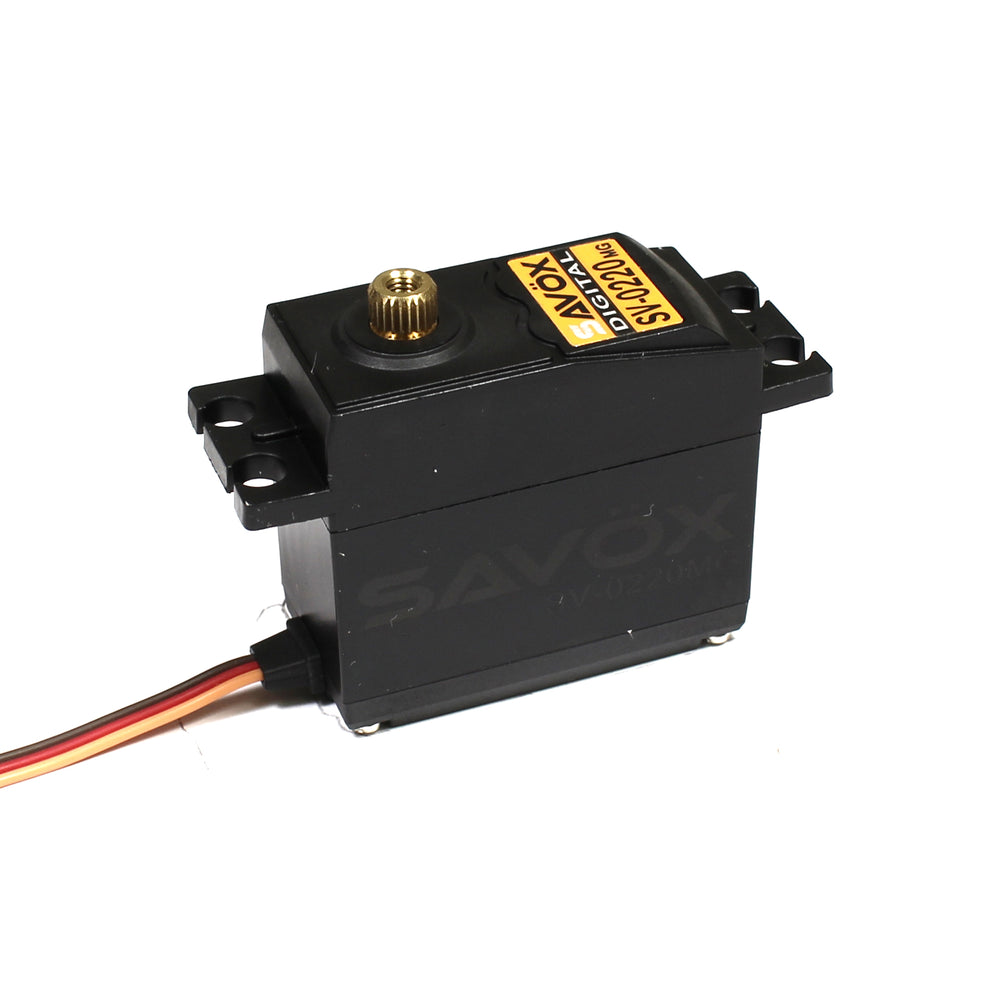

The Savox SV-0220MG is a budget-friendly, metal-geared, digital standard servo capable of operating on high voltage.

Features:

  • Metal gear train ensures durability and longevity.
  • Capable of high voltage use.

  • Specifications:

  • Torque @6v - 6.5kg/90.3oz-in
  • Torque @7.4v - 8.0kg/111.1oz-in
  • Speed @6v - 0.16 sec/60 deg
  • Speed @7.4v - 0.13 sec/60 deg
  • Dimensions L x W x H (mm): 40.7 x 20.0 x 37.0
  • Weight: 59.0g
  • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 100mA @6.0V, 120mA @7.4V
  • Stall Current (at locked): 1500mA @6.0 V, 1800mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 1BB
  • Operating Travel: 120° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 164° (800 → 2200 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
  • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
