Savox

SH0264MG - Super Torque Micro Digital Servo 0.06/16.7 @ 6V

$35.99$43.99
  • SH0264MG - Super Torque Micro Digital Servo 0.06/16.7 @ 6V
  • SH0264MG - Super Torque Micro Digital Servo 0.06/16.7 @ 6V
  • SH0264MG - Super Torque Micro Digital Servo 0.06/16.7 @ 6V

Savox

SH0264MG - Super Torque Micro Digital Servo 0.06/16.7 @ 6V

$35.99$43.99

Description

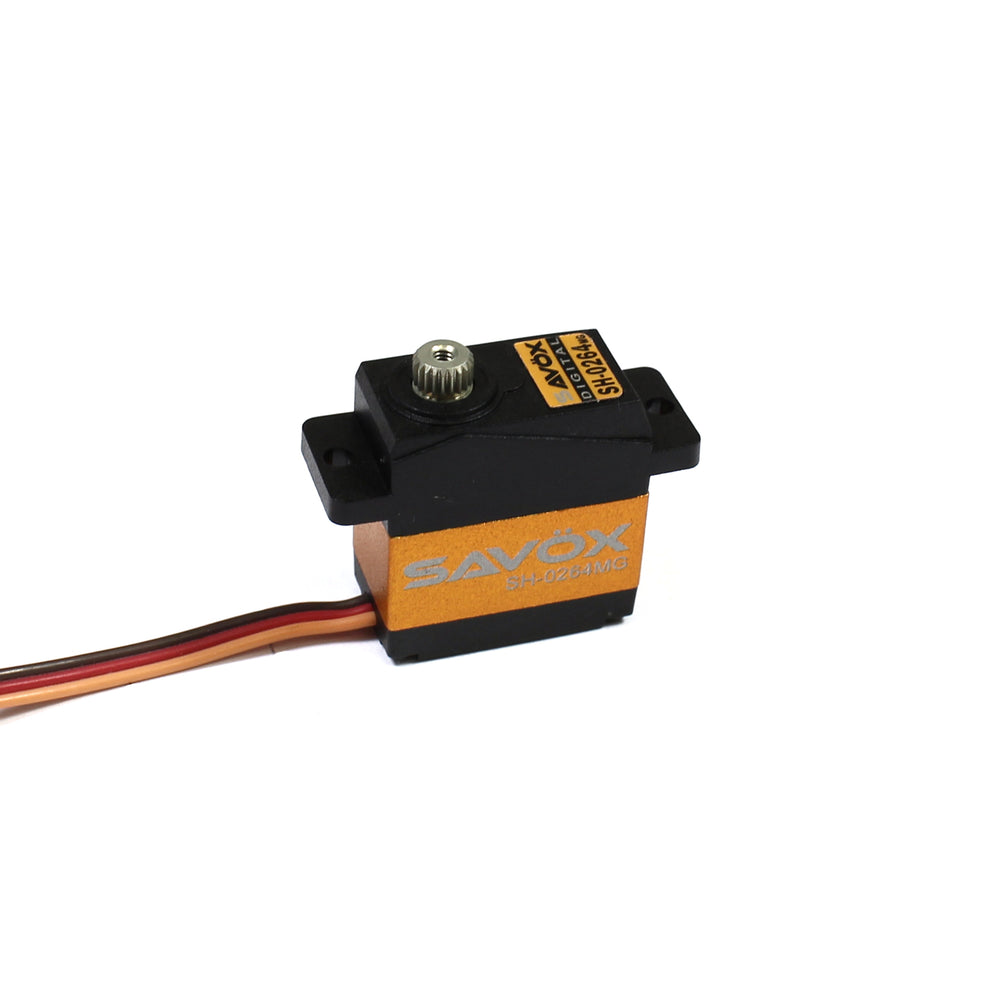

The Savox SH-0264MG metal-gear, super speed, digital, micro servo is the ultimate fast micro servo.

Features:

  • Metal gear train ensures durability and longevity.
  • Aluminum middle case allows for cooler operating temperatures.
  • Ideal for small planes, and 450 size helicopters.
  • Extremely fast speed for immediate response.
  • Dual ball bearing support.

  • Specifications:

  • Torque @4.8v - 0.8kg/11.1oz-in
  • Torque @6v - 1.2kg/16.7oz-in
  • Speed @4.8v - 0.08 sec/60 deg
  • Speed @6v - 0.06 sec/60 deg

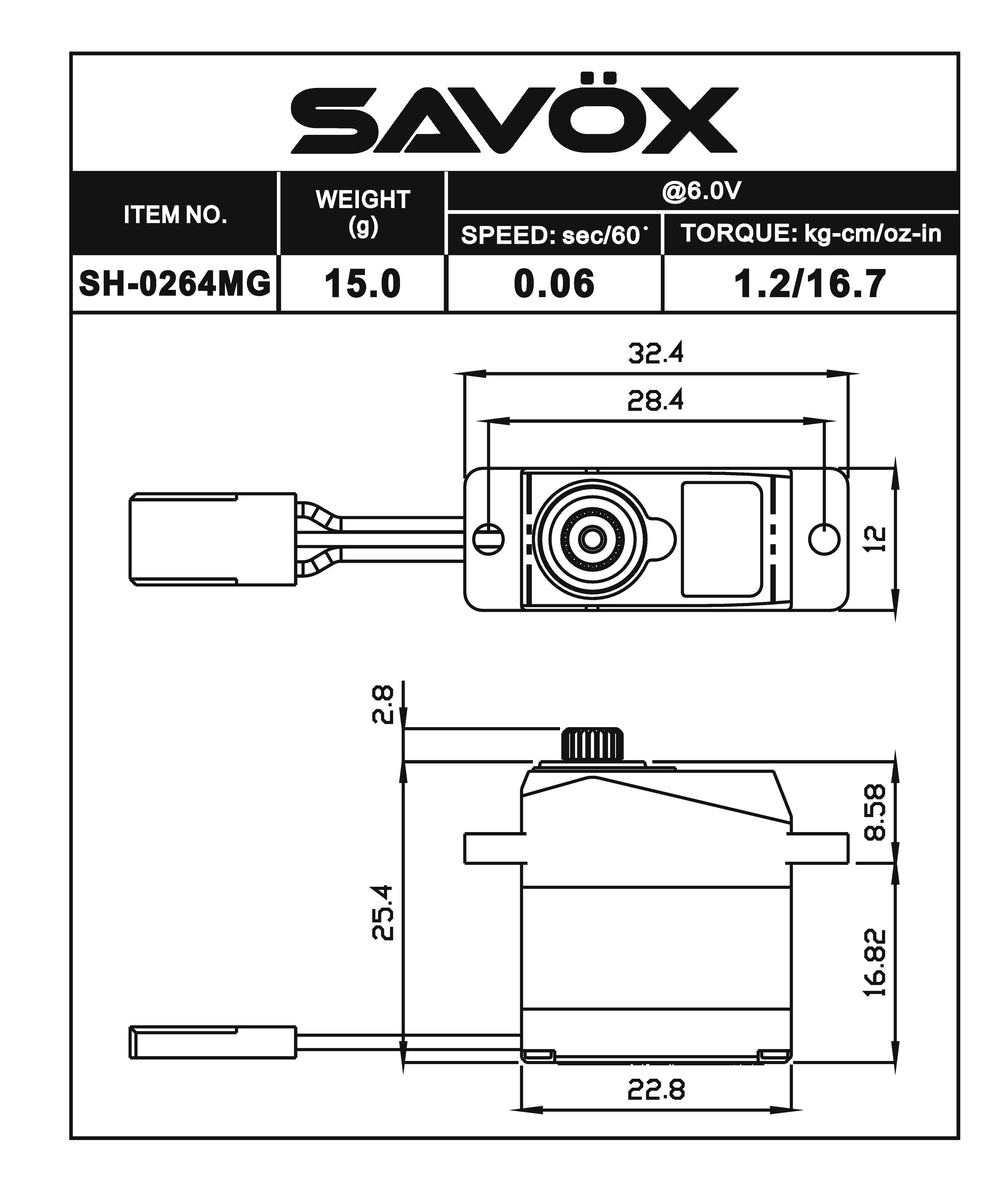

  • Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
  • Weight: 15.0g
  • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 60mA @4.8V, 80mA @6.0V
  • Stall Current (at locked): 480mA @4.8V, 600mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 700 → 2300 µ second
  • Maximum Travel: Appx 150° (700 → 2300 µ second)
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed
  • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
