Savox

SB2272MGP - High Voltage Brushless Digital Gyro Servo w/Soft Start, 0.028sec / 138.9oz @ 8.4V

$109.99$129.99
  • SAVSB2272MGP-High-Voltage-Brushless-Digital
  • SAVSB2272MGP-High-Voltage-Brushless-Digital
  • SB2272MGP - High Voltage Brushless Digital Gyro Servo w/Soft Start, 0.028sec / 138.9oz @ 8.4V

Savox

SB2272MGP - High Voltage Brushless Digital Gyro Servo w/Soft Start, 0.028sec / 138.9oz @ 8.4V

$109.99$129.99
1

Description

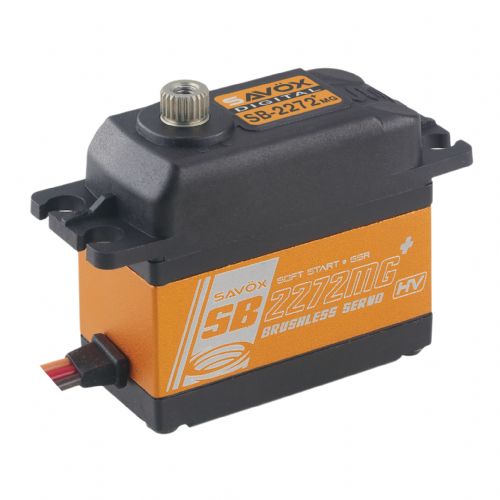

The Savox SB-2272MGP High Voltage Brushless Digital Servo combines a brushless motor and metal gears to ensure long lasting performance. The incredible speed of this servo makes it ideal for use with gyros.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Metal Gear train for extended life and durability.
  • Brushless motor for smooth operation and efficiency.
  • Ideal for helicopter use due to its amazing speed.

    • Specifications:

  • Torque/Speed @ 6v - 5.0kg/69.4oz-in, 0.045 sec/60 deg
  • Torque/Speed @ 7.4v - 7.0kg/97.2oz-in, 0.032 sec/60 deg
  • Torque/Speed @ 8.4v - 10.0kg/138.9oz-in, 0.028 sec/60 deg

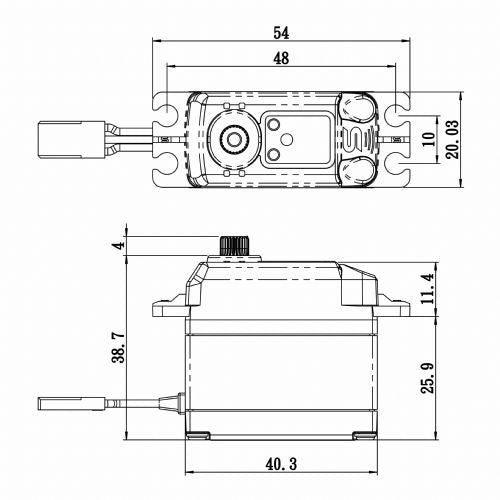

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 38.7
  • Weight: 69g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 300 +/- 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
