Savox

SV1270TGP - High Voltage Coreless Digital Servo w/ Soft Start, 0.10sec / 624.9oz @ 8.4V

$105.99$124.99
  • SAVSV1270TGP-High-Voltage-Coreless-Digital
  • SAVSV1270TGP-High-Voltage-Coreless-Digital
  • SV1270TGP - High Voltage Coreless Digital Servo w/ Soft Start, 0.10sec / 624.9oz @ 8.4V

Savox

SV1270TGP - High Voltage Coreless Digital Servo w/ Soft Start, 0.10sec / 624.9oz @ 8.4V

$105.99$124.99
1

Description

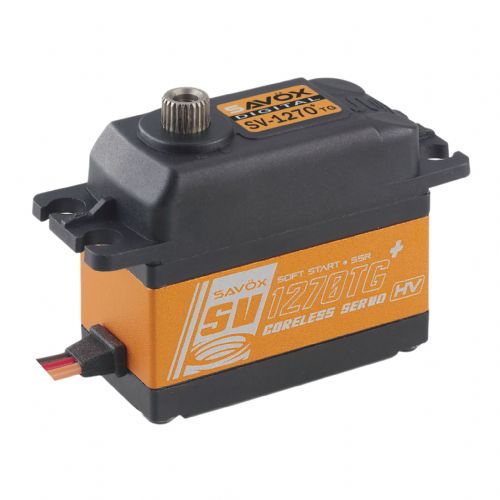

The Savox SV-1270TG Plus Digital High Voltage "Monster Torque" Titanium Gear Servo is built to handle extreme requirements, with a great combination of speed and high torque. It's a fantastic choice for 1/8 applications.

"Plus" series servos feature Soft Start and Sanwa SSR compatibility.

Features:

  • Super strong, precision made titanium gears provide durability that will survive heavy use.
  • Ideal for large-scale airplane, 1/8 truck, and Monster Truck applications
  • The servo that racers desire.

    • Specifications:

  • Torque @ 7.4v - 40.0kg/555.5oz-in
  • Torque @ 8.4v - 45.0kg/624.9oz-in
  • Speed @ 7.4v - 0.11 sec/60 deg
  • Speed @ 8.4v - 0.10 sec/60 deg

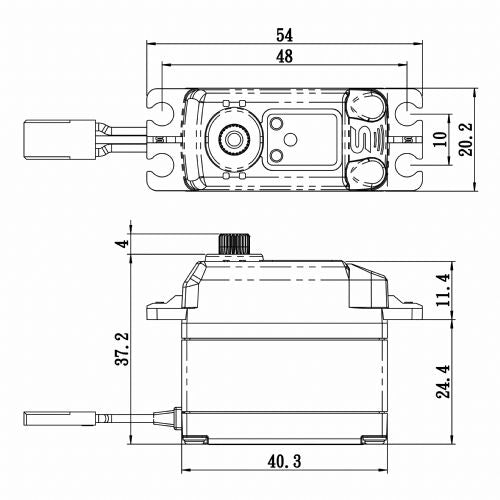

  • Dimensions L x W x H (mm): 40.3 x 20.2 x 37.2
  • Weight: 64.0g

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 120mA @6.0V, 150mA @7.4V
  • Stall Current (at locked): 5500mA @6.0 V, 6800mA @7.4V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 100° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Coreless

    • 1 Year Warranty

    Savox servos are backed with a warranty for 1 year after purchase (see warranty page for details)
