Savox

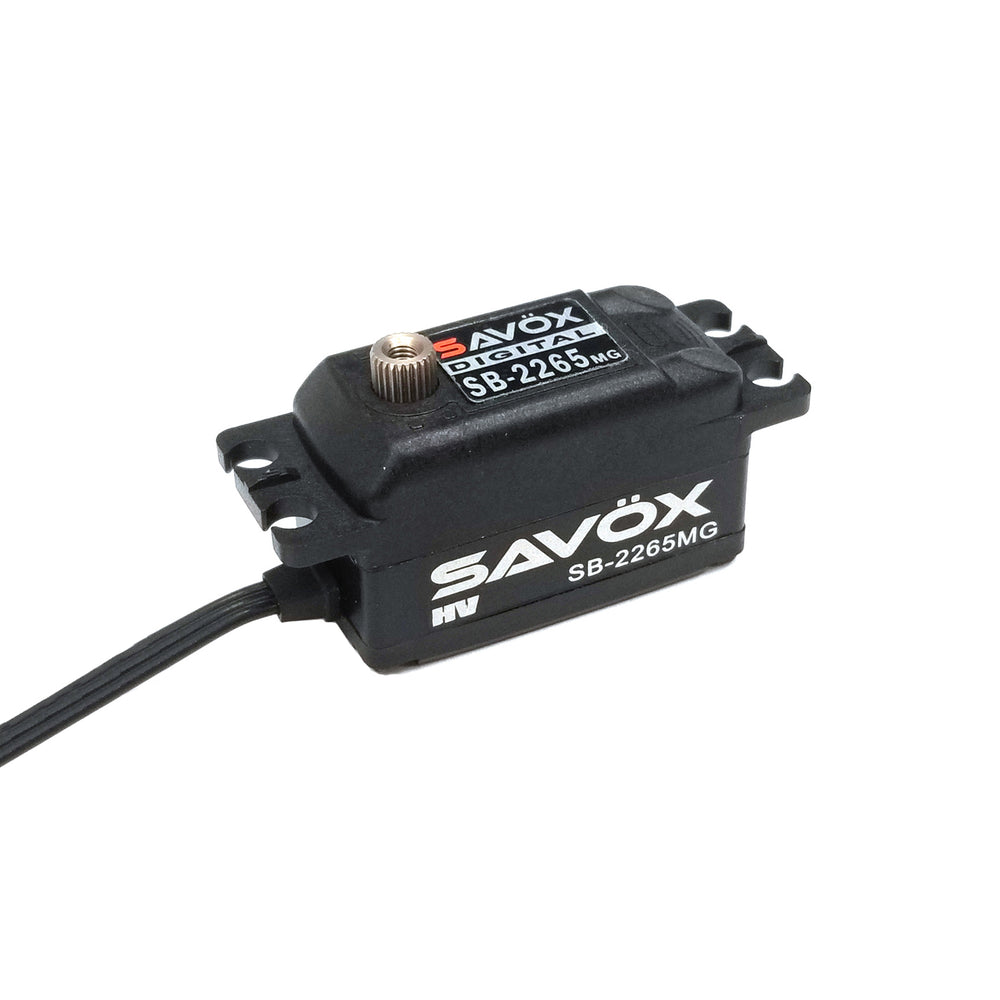

SB2265MG-BE - Black Edition Low Profile High Voltage Brushless Digital Servo 0.08sec / 166.6oz @ 7.4V

$84.99$104.99
  • SB2265MG-BE - Black Edition Low Profile High Voltage Brushless Digital Servo 0.08sec / 166.6oz @ 7.4V
  • SB2265MG-BE - Black Edition Low Profile High Voltage Brushless Digital Servo 0.08sec / 166.6oz @ 7.4V
  • SB2265MG-BE - Black Edition Low Profile High Voltage Brushless Digital Servo 0.08sec / 166.6oz @ 7.4V

Savox

SB2265MG-BE - Black Edition Low Profile High Voltage Brushless Digital Servo 0.08sec / 166.6oz @ 7.4V

$84.99$104.99
1

Description

Features:

  • Metal gear train ensures durability under harsh situations.
  • Servo Type / Size: Low Profile
  • Application: 1/10 Cars
  • Motor Type: Brushless
  • Gear Material: Steel

    • Specifications:

  • Input Voltage (V): 7.4v
  • Torque @ 7.4v - 12.0kg/166.6oz-in
  • Speed @ 7.4v - 0.08 sec/60 deg

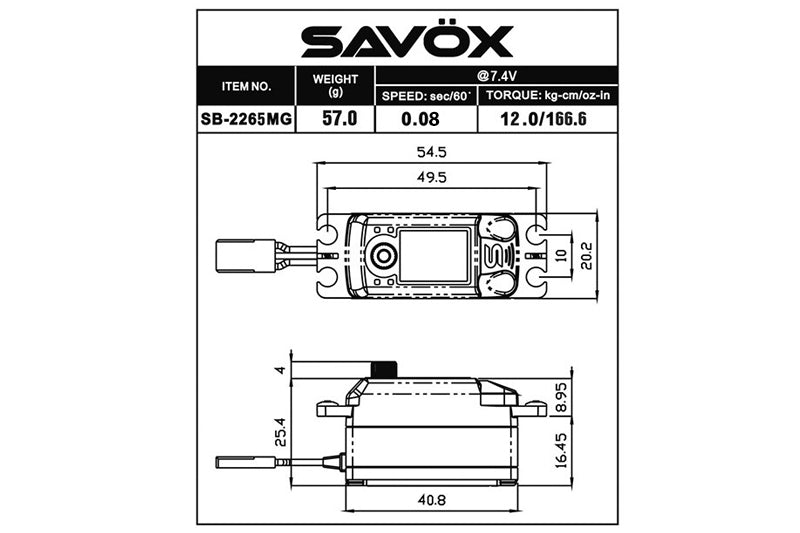

  • Dimensions L x W x H (mm): 40.8 x 20.2 x 25.4
  • Weight: 57.0g
  • Spline size: 25T

    • Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 180mA @6.0V, 220mA @7.4V
  • Stall Current (at locked): 3700mA @6.0 V, 4600mA @7.4V
  • Idle Current: 5mA @6.0V, 5mA @7.4V
  • Wire Length: 200 ± 5mm
  • Output Gear Spline: 25 Tooth
  • Bearings: 2BB
  • Operating Travel: 90° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 800 → 2200 µ second
  • Maximum Travel: Appx 130° (900 → 2100 µ second)
  • Refresh Rate: 333 Hz
  • Motor Type: Brushless

    • 1 Year Warranty
